277V High Power Flood Lights

Brand Name : DALITE

Model Number : ZTGL-1101

Certification : CE, UL

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Form + Carton

Material : Die-cast aluminium housing

Input Voltages : 120-277V

Efficiency @3030 : >130LM/W

CCT : 3000-6500K

IP rating : IP66

Impact Resistance : IK09

Working Temperature : -40-50℃

Working Humidity : 10%-95%

Contact Now

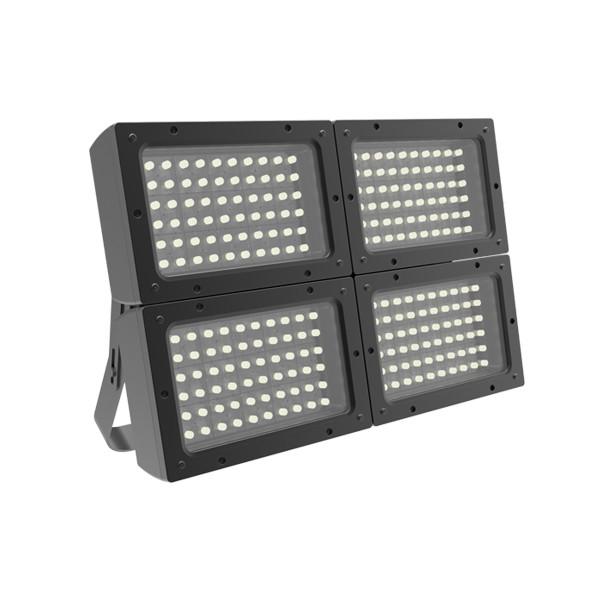

Waterproof IP66 Energy Saving Long Lifetime HP Flood Light, ZTGL-1101 High Power Led Flood Lights

ZTGL-1101CDE
Key advantages
  • Die-cast aluminum housing and glass diffuser
  • Textured architectural dark bronze powder coat finish
  • Other colour available under request
  • Swivel arm, Slip fitter, bracket, wall mount, trunnion mount solution
  • Silicon Gasket , IP66
  • Voltage sensing 120-277V with 1-10V dimmable driver

Characteristics
Code ZTGL-1101C ZTGL-1101D ZTGL-1101E
Size(D*W*Hmm) 344*154*529 690*161*525 690*161*738
Rated Power 240/300W 400/500/750W 1000/1200W
Beam Angle 15°/30°/60°/90°/120°
Efficiency @3030 >130LM/W
Luminous Flux >31200/39000LM >52000/65000/97500LM >130000/156000LM
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.9
Protection Index IP66
Impact Resistance IK09
Working Temperature -40-50℃
Working Humidity 10%-95%
Electrical Class Class I
Finishing Standard color(RAL 7035,7042,9006,9007) other colors upon request
Service Life >50000H

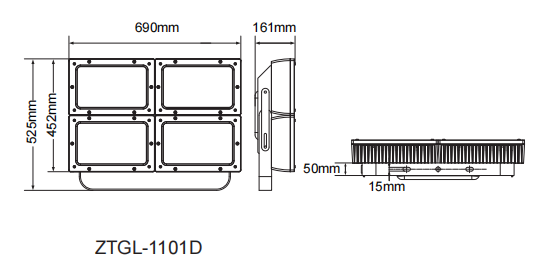

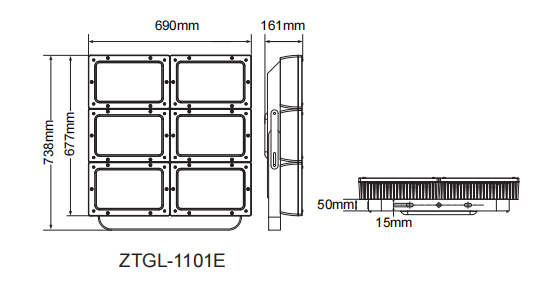

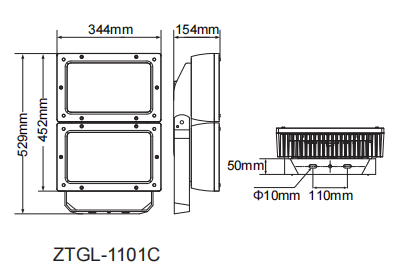

Dimensions
277V High Power Flood Lights
277V High Power Flood Lights
277V High Power Flood Lights

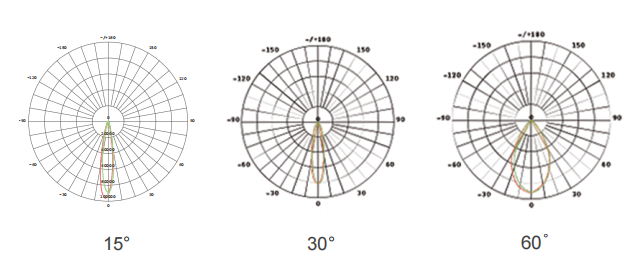

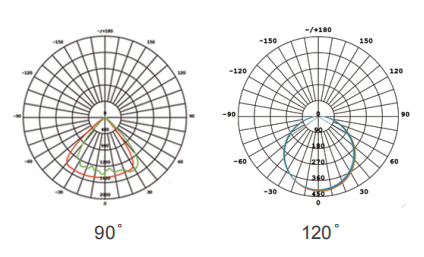

Photometric Distributions
277V High Power Flood Lights
277V High Power Flood Lights

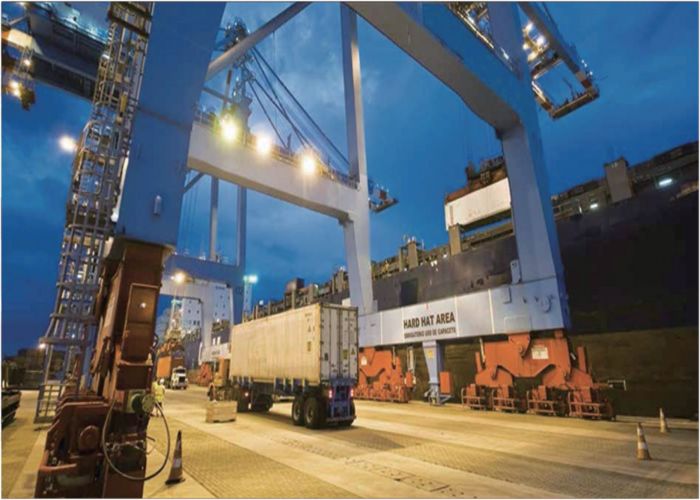

Application sample
277V High Power Flood Lights
